Quality Inspection: CMM, Calipers and Reports

Calipers and handheld tools: what they check well

A digital caliper reads to 0.01 mm and is accurate enough for most sheet metal dimensions, hole diameters, and simple linear features on machined parts, provided the operator is measuring the correct reference surface. Micrometers give tighter repeatability on critical single dimensions such as a shaft diameter at a bearing fit. Height gauges and surface plates check flatness and step heights. What handheld tools cannot easily verify is true position of a bolt pattern relative to a datum, profile of a curved surface, or perpendicularity and parallelism across a full part; these need either a CMM or careful use of dial indicators and fixtures that most workshops reserve for high-value parts only.

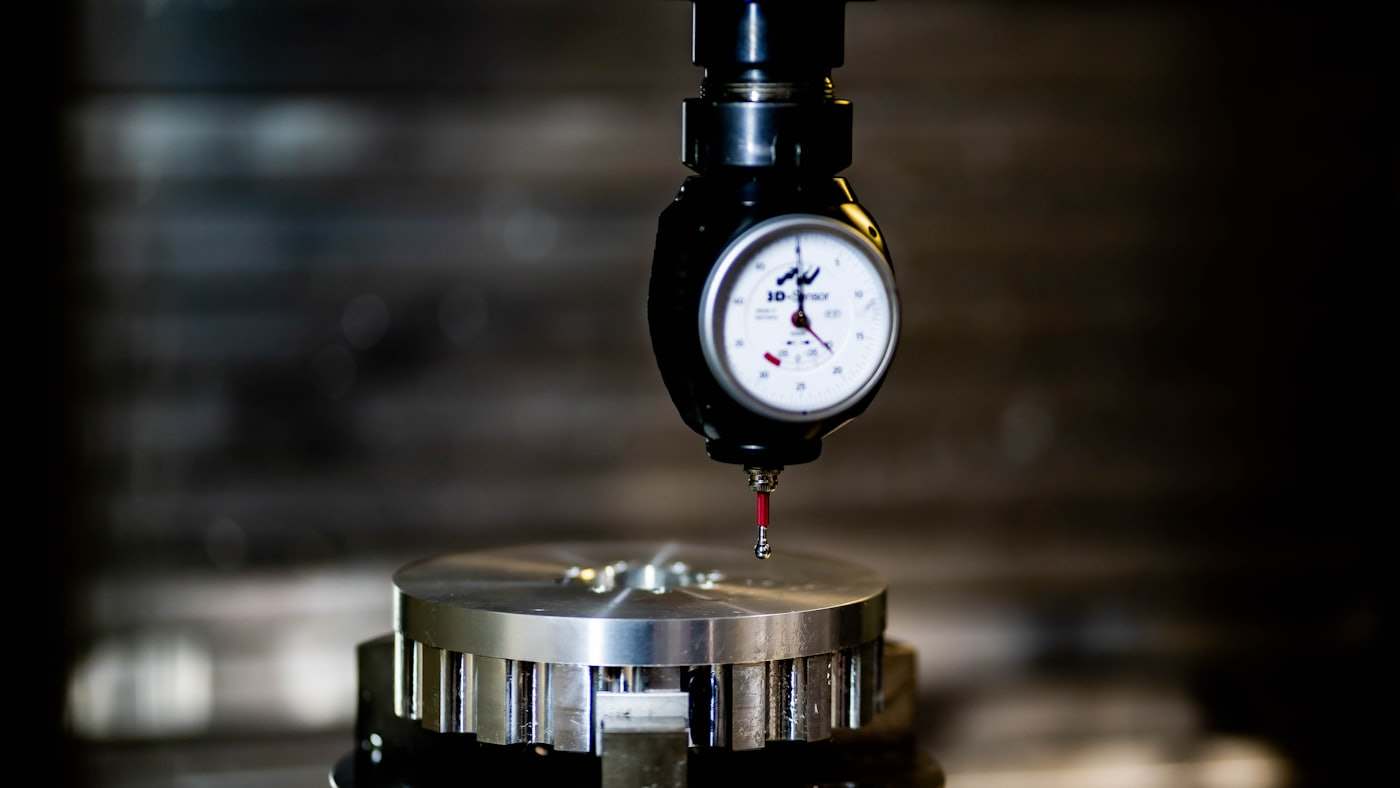

What a CMM measures and why it matters

A CMM probes the part at defined points and calculates dimensions, position and form against the CAD model or drawing, typically to 0.005 to 0.01 mm accuracy depending on the machine and part size. It verifies true position (how far a feature's actual centre sits from its theoretical position, expressed as a diameter tolerance zone under GD&T), flatness, perpendicularity, and profile tolerance on curved surfaces, none of which a caliper measures directly. For an assembly of several machined parts that must fit together, CMM data on each part's critical features catches a tolerance stack-up problem before parts reach final assembly, rather than after.

Worked example: first article inspection of a machined bracket

A bracket has four M6 clearance holes on a bolt pattern with true position tolerance of ⌀0.2 mm at MMC relative to two datums, an overall length of 120 ±0.1 mm, and a flatness call-out of 0.05 mm across the base. First article inspection reports: overall length measured at 120.04 mm (within tolerance); true position of the four holes measured at 0.08, 0.11, 0.15 and 0.09 mm from theoretical centre, all within the 0.2 mm zone; flatness measured at 0.03 mm across the base (within tolerance). The report lists each dimension, its tolerance, the measured value and pass/fail, so the buyer can see exactly which features were checked and by how much margin they passed, rather than a simple 'conforms' statement.

Request this level of report only for features that are genuinely critical to fit or function; measuring and reporting every dimension on a simple bracket at CMM level adds cost and lead time without adding useful information.

When to request what

For simple sheet metal brackets with general ISO 2768 tolerance, a caliper check on a sample basis is standard and usually included at no extra step. For parts with GD&T call-outs, tight bearing fits, or assemblies where multiple parts must mate precisely, request CMM inspection on the critical features specifically, not the whole part, to keep cost proportionate. For first production runs or export shipments, a first article inspection report on the first piece from a new tool or process, followed by sample checks on the rest of the batch, catches setup errors before the full batch is produced.

Applications

Pricing and lead time

Inspection cost depends on which features need checking (a handful of critical dimensions costs far less than full-part CMM scanning), the tolerance band (tighter tolerances need slower, more careful measurement), and reporting format (a formal dimensional report with pass/fail per feature takes longer to prepare than a verbal confirmation). A caliper spot check adds no meaningful lead time; targeted CMM inspection on a handful of features typically adds 1 to 2 working days; a full first article inspection report on a new part adds 2 to 3 working days on the first piece only.
